TrafficJet™ Xpress

TrafficJet Xpress is built on the proven Mimaki UCJV-300 platform and optimized for traffic signage, work zone applications, and custom graphics. With faster start-up and no drying time, this printer is ideal for an entry-level to intermediate-sized sign shop. True Traffic Color™ spot inks and included software simplify the process of producing specification-compliant traffic control, wayfinding, and custom signage.

Meet the new TrafficJet™ Xpress

  • UV-LED ink technology supports instant lamination, so orders get out the door faster
  • The printer's simplified maintenance process makes this printer easy to use
  • Fastest start-up time, so you can go from start to print in 2 minutes
  • Reduce your carbon footprint with this Energy Star Certified printer



Request a Quote

Watch in Spanish | Portuguese

UV-LED Technology

Energy Star Certified

Fast Start Up

True Traffic Color™ spot inks

Product Overview

The TrafficJet Xpress

Learn more about the new TrafficJet Xpress.

Download arrow_forward
trafficjet-xpress-product-overview

Read in Spanish | Portuguese

Video

The TrafficJet Xpress Demo

See how the TrafficJet Xpress can improve your sign shop in this comprehensive demo.

Watch arrow_forward
trafficjet-xpress-demo

Watch Spanish | Portuguese

Request a Sample

Specifications



Print head Drop-on demand, piezo drive method
Print resolution 300 dpi, 600 dpi, 900 dpi, 1200 dpi
Maximum print speed 277.7 sf/hr (25.8 sqm/hr)
Typical traffic sign resolution 300x900 dpi
Traffic sign print speed Up to 108 sf/hr (10 sqm/hr)
Ink type TrafficJet™ True Traffic Color UV-LED inks

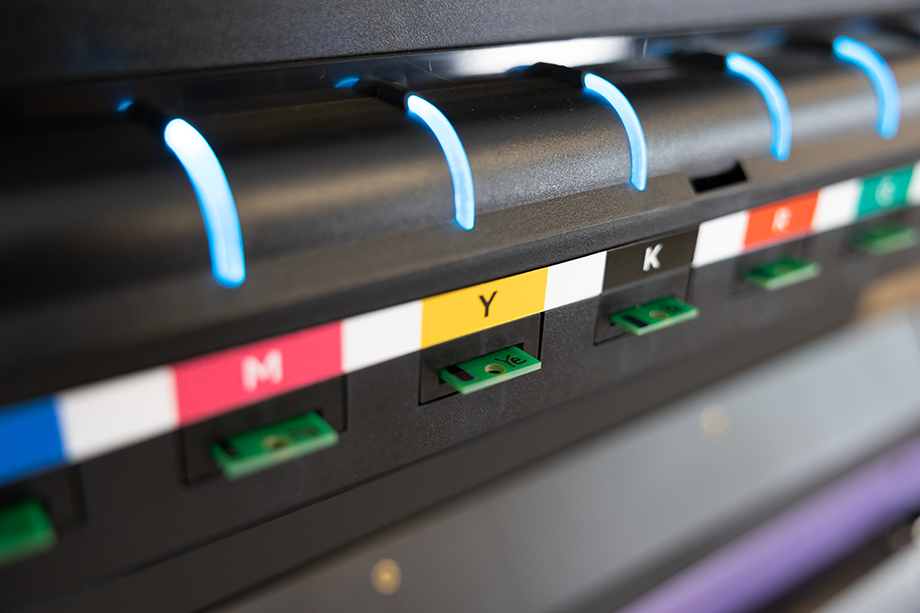

Color configuration True Traffic Color™ spot inks (CMYKRG)
Maximum media width 63.8" (160 cm)
Maximum media thickness up to 0.04" (1 mm)
Maximum roll weight 88 lbs (40 kg)
Interface Ethernet, USB
Power supply Voltage: AC 100V~240V x2
Power consumption AC100V: 1.44kW / AC200V: 1.92 kW
Take-up system Standard
Software FlexiPRINT Avery Dennison Edition
Operating temperature 68°F–86°F
Operating humidity range 35%–65%
Dimensions ( W x D x H) 114.2" (290 cm) × 30.6" (77.6 cm) × 58.1" (147.5 cm)
Weight (printer) 414.5 lbs (188 kg)
Dimensions (shipping info) 130.5" (332 cm) x 30.6" (77.6 cm) x 58.1" (147.5 cm)
Weight (shipping info) 558 lbs (253 kg)
Limited warranty 1 year

Just one call

We manufacture the sheeting, the digital inks, and provide the service. Learn more about the benefits of digitally printing with Avery Dennison.
